Flexible Control Cable Copper Wire Screened Flame-retardant Braided Shielded H07VV H07VVCY
APPLICATION
-
Signal Transmission
-
Mobile Equipment Wiring
-

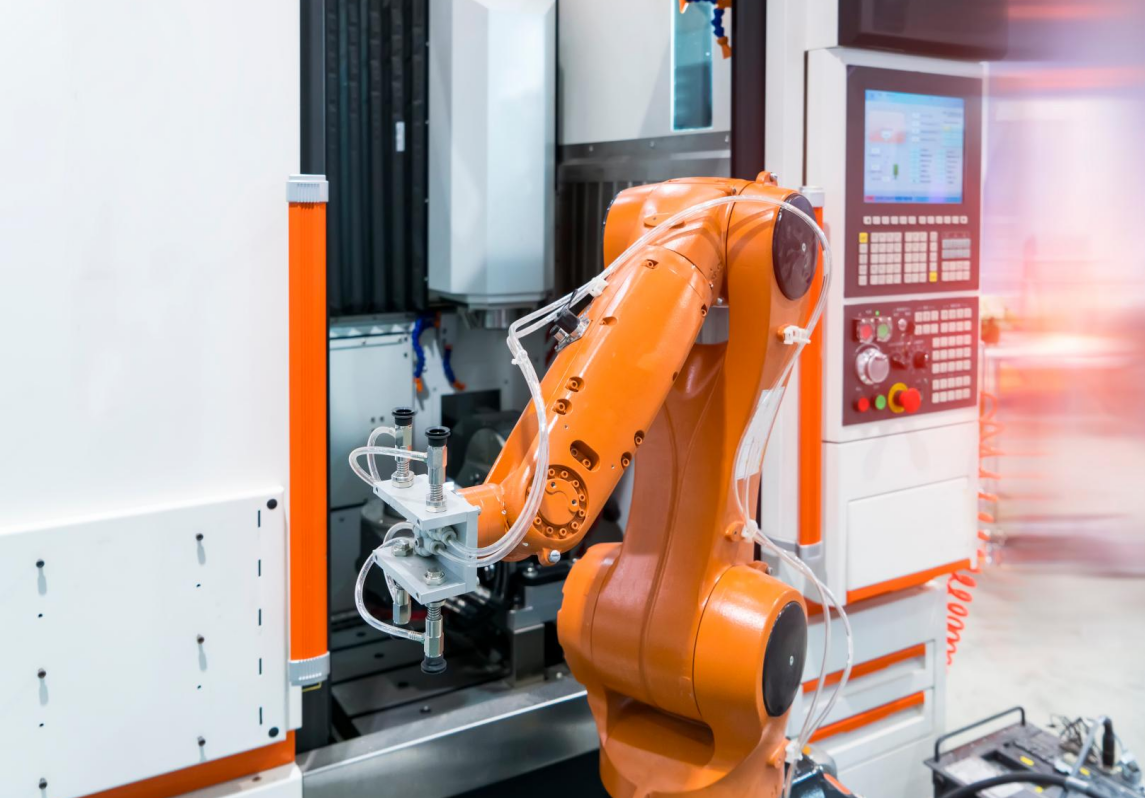

CNC Machines/Industrial Robots
-
Cranes/Electric Hoists
-
Power Plants/Substations
-
Distribution Systems
CONSTRUCTION
Conductor:Circular solid copper conductor(A) or circular stranded copper conductor(B)
Insulation:Polyvinyl chloride (PVC)
Filler:Polypropylene mesh tear rope or flame-retardant filling
Braiding:Soft round copper wire or tin plated round copper wire
Outer sheath:Polyvinyl chloride (PVC)
CHARACTERISTIC
Voltage Rating Uo/U: 450/750V
Temperature Rating
Maximum operating temperature of conductor:+70℃
Operating ambient temperature: -15℃~+45℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: 6D (D is the actual outer diameter of the cable)
STANDARD
GB/T9330.2-2008
Specification
No of core: 2-61 core
Nominal cross-section of conductor: 0.5-10mm2
TYPE
| Type | Name | Applying bound |
| KVV | Copper conductor PVC insulated and sheathed control cable | For laying indoors, in trenches, and in ducts for the fixed installation |
| KVVP | Copper conductor PVC insulated & sheathed copper wire braiding screened control cable |
For laying indoors, in trenches, and in ducts for the fixed installation
|
| KVVP2 | Copper conductor PVC insulated and sheathed control cable with steel tape shied | For laying indoors, in trenches, and in ducts for the fixed installation |
| KVV22 | Copper conductor PVC insulated and sheathed control cable with steel tape armoured | For laying indoors, in trenches, in ducts and in ground, able to with stand heavier mechanical force and for fixed installation |
| KVVR | Copper conductor PVC insulated flexible control cable | For laying indoors, movable and flexible |
| ZR-KVVP | Copper conductor PVC insulated & sheathed copper wire braiding screened flexible control cable | Fixed laying indoors with capability of moving and screening |
| ZR-KVV | Copper conductor PVC insulated and sheathed flame retardant control cable | For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance |
| ZR-KVVP2 | Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield | For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance |
| ZR-KVV22 | Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armoured | For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardance and able to bear beavier extermal mechanical force and for fixed installation |
| ZR-KVVR | Copper conductor PVC insulated and sheathed flame retardant flexible control cable | For laying indoors, and the cable should be flame-retardant flexible and movable |
OUR FACTORY
APPLICATION
FAQ
Q1.Are you a factory or trading company?
A1: We are a manufacturer.
Q2:How to get a free sample?
A2.Ofcourse,we could provide free samples and you charge the shipping cost
Q3. How long delivery time?
A3.It usualy take 7-10days for sample order and 25-30days for big order.
Q4.What is your payment term?
A4.Ourpaymenterm is usualy T/T30% in advanced,the balance before picking up the goods
Q5. Why should you buy from us instead of other suppliers?
We strictly comply with the international standards in our porduction process.
|
|
